Wireless Android Auto and Apple Carplay Decoder Box Module For BMW X5 X6 NBT Mirrorlink Youtube Original Radio Update

Support

Porsche、Mercedes-Benz、Audi、Volkswagen、Volvo、Peugeot、Citroen、Cadillac、Buick、Chevrolet、Ford、Toyota、Honda and other models

ModelName

MMB（WJAN-4)

1. Functional specifications

Function

Instructions

Internet connection

Wi-Fi connection

The wireless device sends a hotspot to the box, and the box connects to the wireless device wifi to provide internet access.

1.Touchable cars can be connected by clicking on any hotspot and entering the password on the device activation and hotspot connection page.

2.The non-touch central control screen only supports the preset password 12345678, users need to change the password for the network equipment to 12345678

Hotspot Tutorials

Provide a tutorial on not being able to connect

Input Method

Input Method

Google input method

Local

USB Flash Drive Media

Supports mp4, AVI and other major video formats

Supports WAV, AAC, WMA, AMR, MP3, FLAC and other major music formats

Mobile Screen Casting

Mobile Mirroring

Supports wireless mirroring of Iphone phones

Supports wireless mirroring of mainstream Android phones

Cast screen

Cast screen

Support for Apple's YouTube cast and TV cast for Android and Apple's video software

More applications

Install the app yourself

Support users to download applications; (specific functions are based on customer requirements)

Settings

Check out the help

Scan the code to view the tutorial, all apps are supported to scan the QR code to access it (Common problem description - English content)

Universal settings

Clear cache

Language settings

Default English

Version upgrades

Upgrade via USB flash drive

Restore factory settings

Support to be restored to factory system

Factory model

Controlable app icon: Google Play (supports removal of user-installed software)

Bluetooth

Bluetooth phones

Calling and answering the phone

Bluetooth music

Play music

Third-party applications

Note: Knob support is dependent on third party software support, if not,it may not be a friendly experience for non-touch car machines

Google Maps

Google Play

Factory mode control open

YouTube

File Browser

Factory mode control open

2. Hardware specifications

Category

Parameters

CPU

allwinner H6 A53 4-core 1.5GHz

GPU

Main chip integration

RAM

4GB DDR3

NAND FLASH

eMMC 32GB

Display method

Using the original host output

External I/O ports

USB port

Bluetooth modules

DDBT010_B (with protocol stack)

WiFi module

IEEE 802.11b\g\n 2.4GHz

IEEE 802.11b\g\n 2.4GHz

GPS modules

HD1010 (GPS+Beidou), external antenna for GPS module

Port

1、LED indicator

2、TYPE-C female connector

3. USB female connector

4、BOOT button

3.System

Category

Function

Product systems

Android9.0

Supported resolutions

Resolution: 800*480, 1920*1080, (adapted to the model)

communication protocol

Original USB interface communication

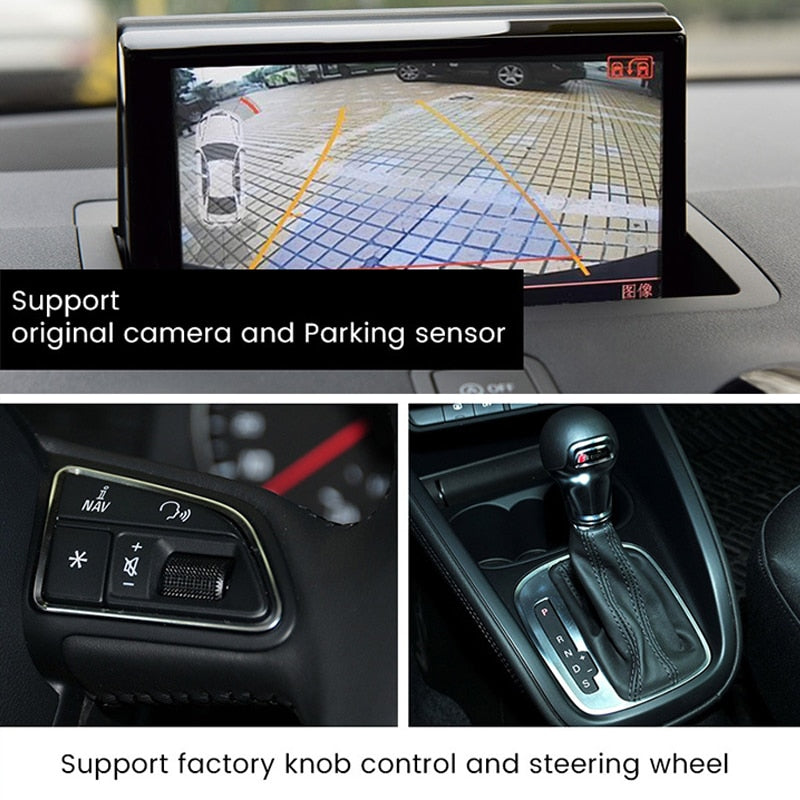

Knobs

Supports left and right rotation, up and down and left and right toggle knob logic for quick operation

Steering wheel controls

Supports controlling audio playback, switching up and down songs, adjusting sound volume and controlling screen operations via car disk control. Evoke Meow Drive voice according to carplay voice logic

UI Style

Built-in multiple sets of UI skins (replaceable); support customization on request

Pre-installed features

Wi-Fi connectivity, settings, Bluetooth, Google Maps, USB media, mobile screen casting, file browser, Google Play, YouTube (subject to demand)

Pre-installed application control

Third-party applications do not support the original knob control but support the simulation of a mouse (hoverball) for application control once the application is entered.

4. Operating parameters

Item

Parameters

Working current

DC 5V  1A±0.3A；

Working voltage

DC 5V

Audio output

Uses the original host output

Working/storage temperature

Normal working temperature: -20°C~+65°C

Extreme working temperature: -20°C~+70°C
